Name: 800G OSFP112 DR8+ Transceiver Dual MPO-12 APC Interface 1310nm 2km OSFP
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFPDD-200G-LR8
Price: 130.00 USD
Availability: InStock

Домой > продукты > Оптически модуль приемопередатчика >

800G OSFP112 DR8+ Transceiver Dual MPO-12 APC Interface 1310nm 2km OSFP

800G OSFP112 DR8+ transceiver with warranty

OSFP transceiver dual MPO-12 APC interface

1310nm optical transceiver module 2km range

Place of Origin:

Guangdong, China

Фирменное наименование:

HILINK

Сертификация:

CE FCC Rohs

Model Number:

HL-QSFPDD-200G-LR8

Свяжитесь с нами

Запросите цитату

Подробная информация о продукции

Data Rate:

800Gb/s

Distance:

2KM

Wavelength:

1310nm

Connector:

MPO12(APC)

Warranty:

3 years

package:

OSFP

Условия оплаты и доставки

Minimum Order Quantity

1pcs

Цена

Подлежит обсуждению

Packaging Details

Static bag, Plastic Flat, Retail box, by requires

Payment Terms

L/C,T/T,Western Union.Paypal

Supply Ability

100/PCS/MONTH

СОБЩЕННЫЕ ПРОДУКТЫ

HL-QSFP200G-SR4 200G QSFP56 SR4 оптический приемник

Получите самую лучшую цену

800G OSFP112 DR8 transceiver, dual MPO-12 APC interface, 1310nm, up to 500m

Получите самую лучшую цену

Высококачественный 10G Ethernet WDM BIDI ER 40KM 1270/1330 XFP оптический модуль волоконно-оптического оборудования

Получите самую лучшую цену

400GBASE-SR8 OSFP PAM4 850nm 100m С FEC DDM MPO-16 MMF Модуль оптического передатчика 400G QSFPDD 850nm 100m SR4 MPO Общий совместимый

Получите самую лучшую цену

Свяжитесь с нами

+86 17677464632

sales02@hilinktech.com

86-755-8317-6243

Свяжитесь сейчас

Описание продукта

800G OSFP112 DR8+ Transceiver Dual MPO-12 APC Interface 1310nm 2km OSFP

Product Specifications

Attribute	Value
Data Rate	800Gb/s
Distance	2KM
Wavelength	1310nm
Connector	MPO12(APC)
Warranty	3 years
Package	OSFP

Product Description

This 800Gb/s Octal Small Form-factor Pluggable (OSFP) optical module features a top closed fin design for 2km optical communication applications. The module converts 8 channels of 100Gb/s (PAM4) electrical input data to 8 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 800Gb/s.

Key Features

OSFP form factor hot pluggable
CMIS compliance
8 channels of 100G-PAM4 electrical and optical parallel lanes
Single optical port of dual MPO-12/APC
Top open fin design
2km maximum reach via single mode fiber
16 Watts max power consumption
Operating temperature range: 0°C to 70°C

Applications

Designed for Ethernet, Telecom and Infiniband applications with multiple configuration options:

8x100G FR: 8 of 100G per channel breakout connections
2x400G DR4+: 2 of 400G per port breakout connections
2x200G DR4+: 2 of 200G per port breakout connections
1x800G DR8+: 1 of 800G per port point to point connection
2x100G PSM4: 2 of 100G per port breakout connections

Mixed application configurations are also supported.

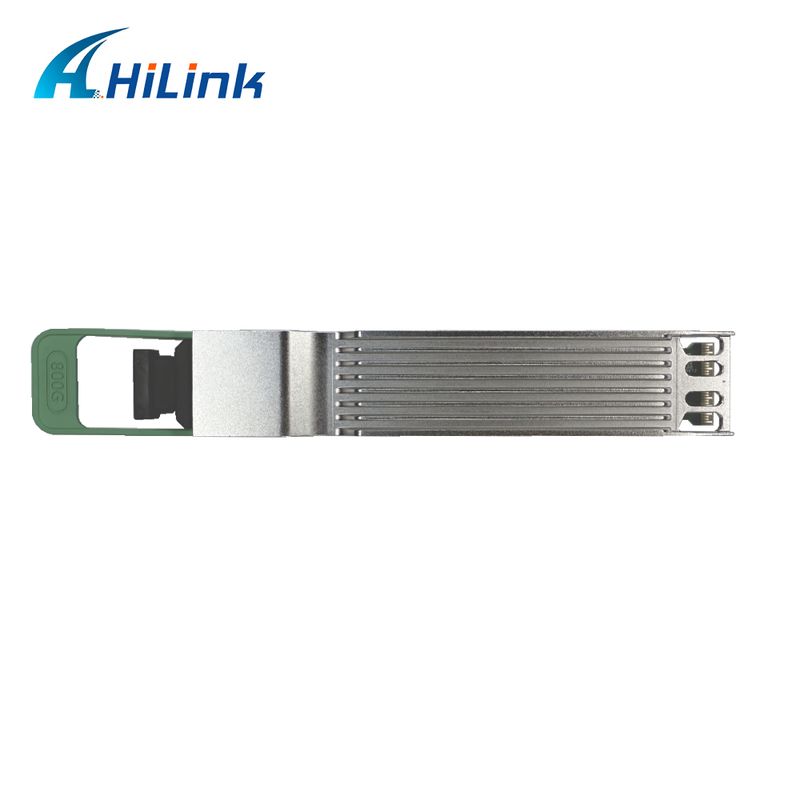

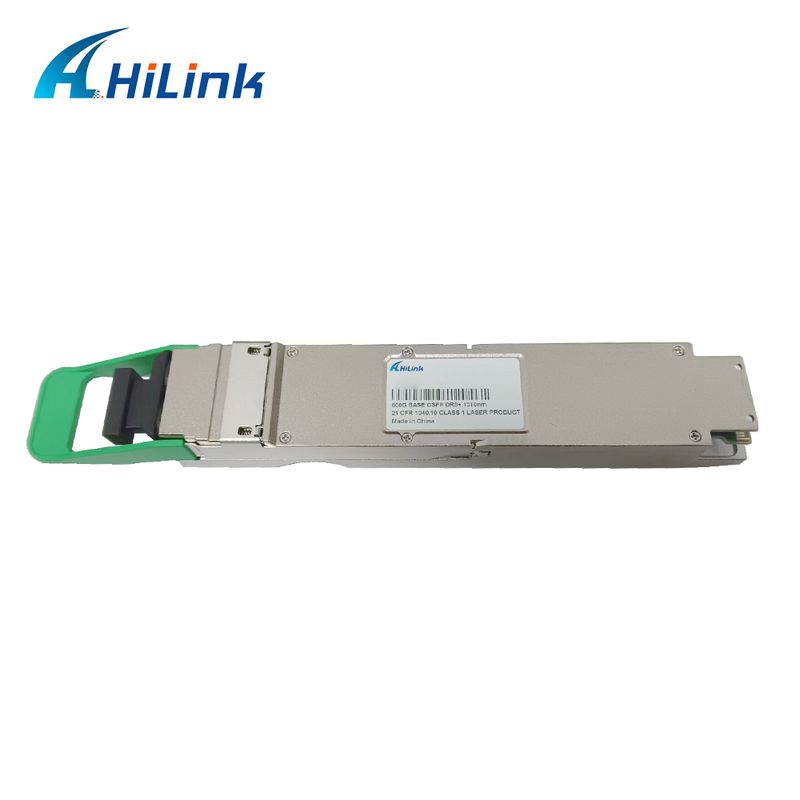

Product Images

Mechanical Drawings

Frequently Asked Questions

Do you sell second-hand products?

No. All our products are brand new and we never use second-hand components.

What payment terms do you accept?

We accept T/T, PayPal, and Western Union payments.

What are the shipping methods available?

We typically ship via DHL, FedEx, TNT, UPS, or EMS with delivery in 3-7 days.

Do your products come with warranty?

Yes, we provide a 3-year warranty for all products from the date of shipment.

How to place an order?

Confirm order details including model and quantity
Review and approve the Proforma Invoice
We arrange shipment upon payment receipt
Tracking number provided promptly after shipping

We offer a wide range of products. If you can't find what you need, please contact us with your requirements and we'll respond promptly.
