Name: High-power 1550nm Mini EDFA Fiber Amplifier with Built-in Optical Switch for CATV and FTTB Networks
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-MINI 1550NM EDFA CATV
Price: 893.00 USD
Availability: InStock

Домой > продукты > demux mux dwdm >

High-power 1550nm Mini EDFA Fiber Amplifier with Built-in Optical Switch for CATV and FTTB Networks

1550nm Fiber Amplifier

High-power EDFA

Built-in Optical Switch Mini EDFA

Место происхождения:

Гуандун, Китай

Фирменное наименование:

HILINK

Сертификация:

CE FCC Rohs

Номер модели:

HL-MINI 1550NM EDFA CATV

Свяжитесь с нами

Запросите цитату

High-power 1550nm Mini EDFA Fiber Amplifier with Built-in Optical Switch for CATV and FTTB Networks

Подробная информация о продукции

Разъем:

FC/APC или SC/APC

Название продукта:

МИНИ 1550NM CATV EDFA

Работая длина волны:

1529,16~1563,86 нм

Условия оплаты и доставки

Количество мин заказа

1 шт

Цена

Just contact me to know latest price

СОБЩЕННЫЕ ПРОДУКТЫ

видео

Мини линия усилитель 1550nm CATV EDFA оптически усилителя оптически

Получите самую лучшую цену

Волокно пакета DWDM Mux Demux коробки модуля Pluggable LGX 8CH DWDM двойное с LC UPC

Получите самую лучшую цену

решетка ITU волокна держателя шкафа 1U 8CH DWDM Mux Demux двойная с LC UPC

Получите самую лучшую цену

Коробка ABS диапазона LC UPC c дуплекса волокна оборудования 100GHZ DWDM MUX Demux WDM 8CH двойная

Получите самую лучшую цену

Свяжитесь с нами

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

Свяжитесь сейчас

Описание продукта

Mini-High-power 1550nm Fiber Amplifier MINI EDFA

MINI EDFA 1550nm building optical amplifiers are mainly used in CATV FTTB network.

Applications

Single-mode fiber 1550nm amplification network
FTTH network
CATV network
Long distance trunk network.FTTx PON, max working wavelength: 1529.16~1563.86nm
All kinds of SDH/PDH transmission systems

Performance Characteristics

Built-in optical switch and backup optical source
Built-in optical fwdm, it can transmit broadband network and CATV together
Built-in 1550nm optical Transmitter for local CATV signal insertion
Adopts Er/Yb Codoped double-clad fiber technology
Dual CATV optical input ports: 2 optional
Olt input ports: 4-16 optional
Com Output ports: 4-16 optional
Optical output power: total output up to 5W(37dBm)
Low noise figure: <6dB when input is 0dBm
Intelligent temperature control system make the power consumption lower

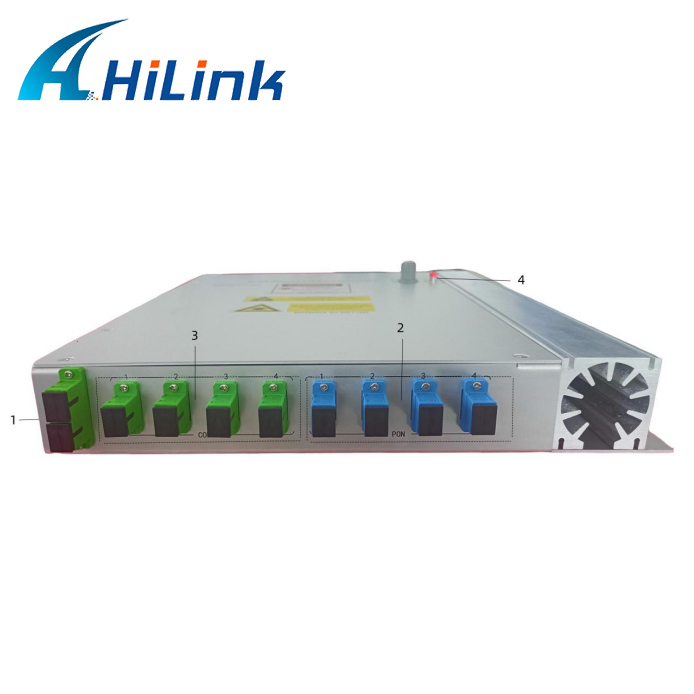

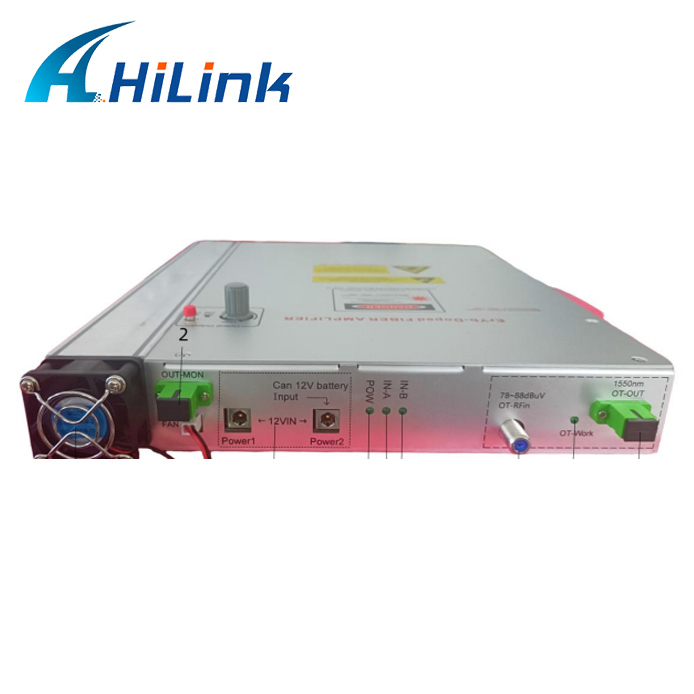

Product Images
